Adopt advanced IGBT inverter technology, with frequency up to 45khz and fast dynamic response;
With MMA welding function, one machine for two purposes, with higher cost performance;
The digital meter is adopted, which is beautiful and atmospheric, and enhances the reliability of the machine;
It has the functions of over-current and over-heat protection, which is safe, reliable and stable in quality;
Excellent High frequency arc starting;
the current adjustment is sensitive and accurate.
The new gas valve is adopted, which greatly saves the gas;
It is suitable for a wide range of network voltage, can work perfectly within 187 ~ 253v, and the current output is stable;
Energy saving, small size, light weight, easy to carry, suitable for outdoor site construction:
Extremely flexible use for welding materials such as: steel, alloys and iron

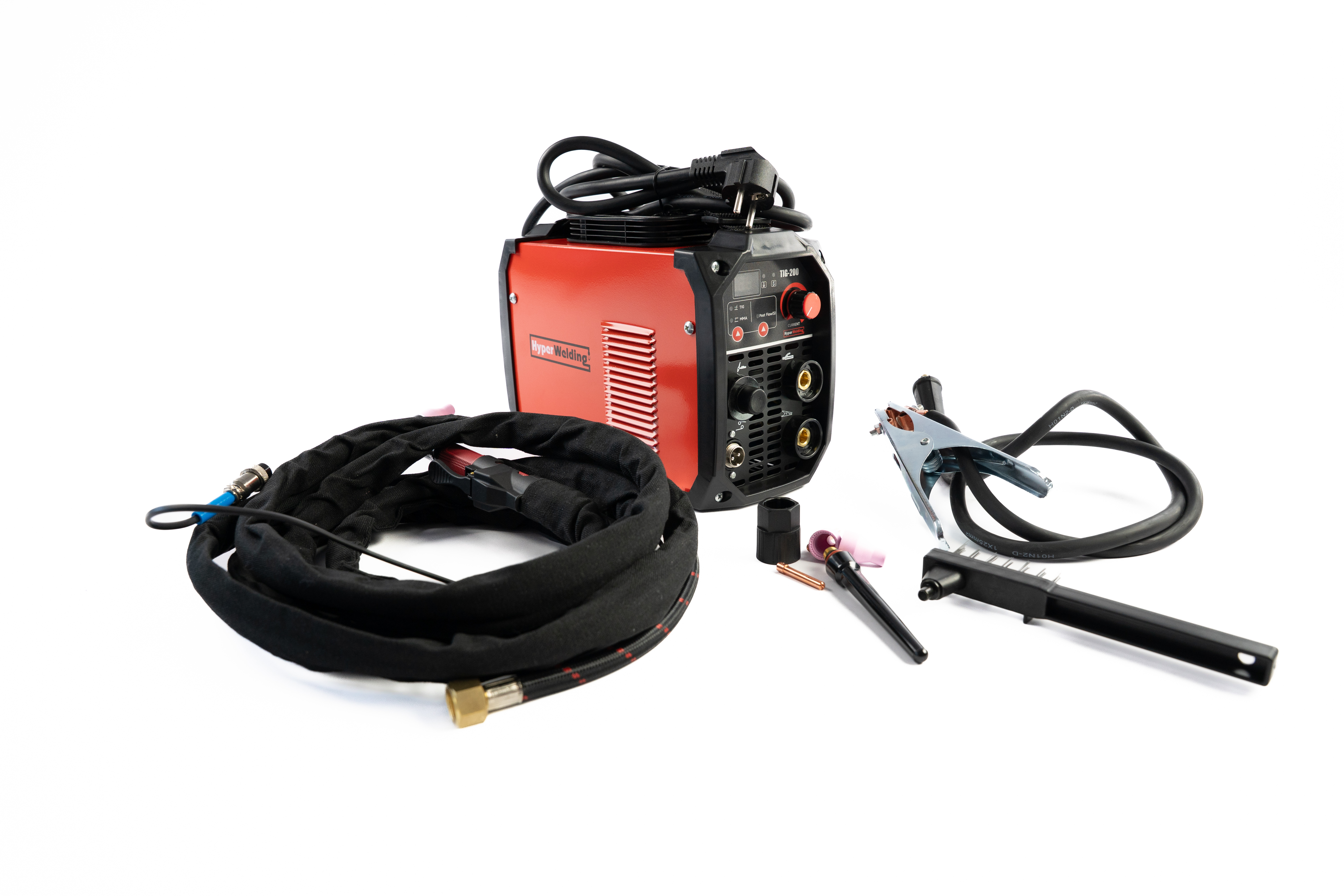

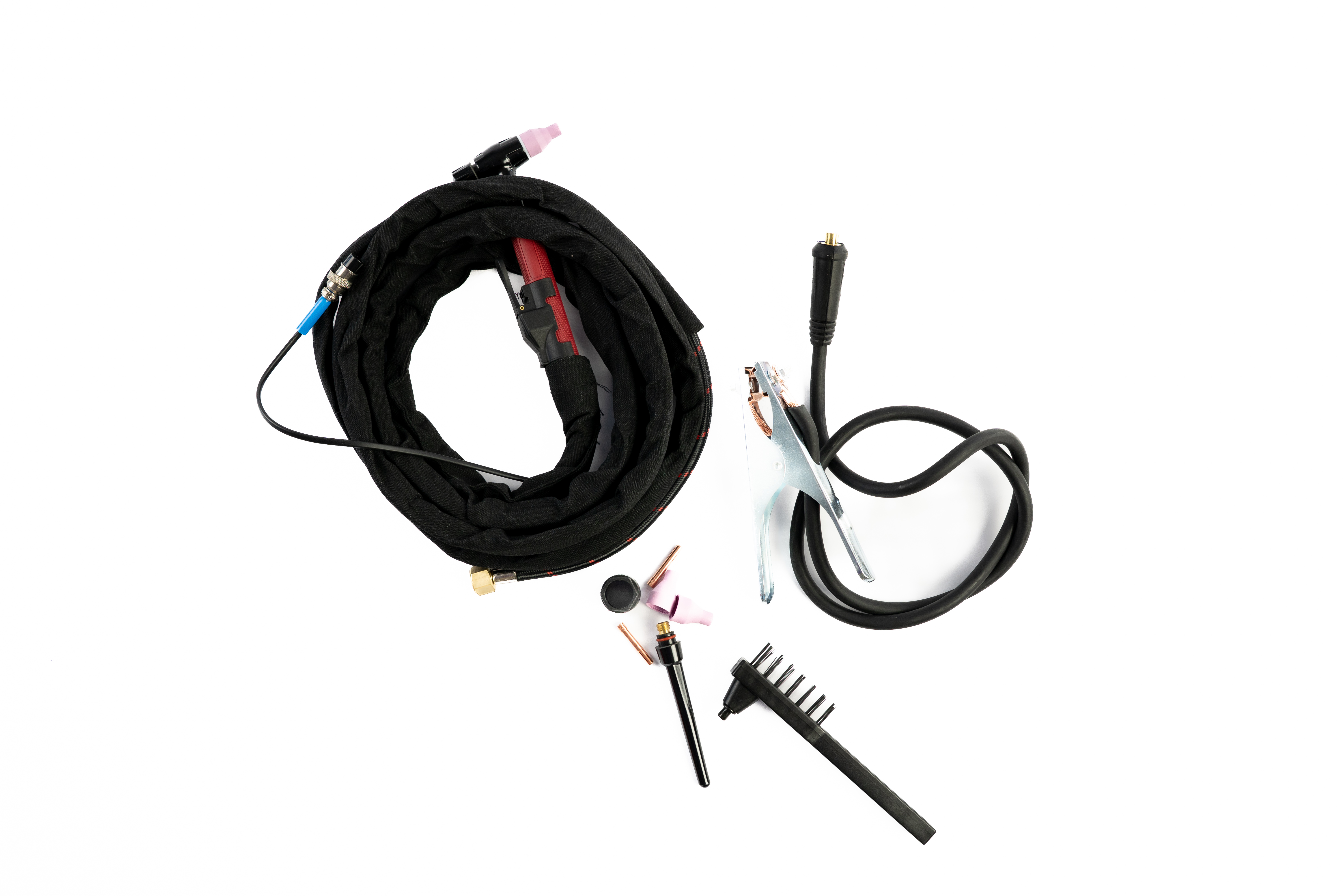

Electrode holder with 1.8m Alu. cable; Earth clamp with 1.2m Alu. cable; Brush, Helmet
Specifications
- Input voltage: 230
- Rated input capacity (KVA): 7.2
- No-load voltage (V): 55
- Output current range: 20 - 200 amps
- Real Max current: 190 amps
- Usable electrode: Ø1.6-5.0mm
- Duty cycle(%): 45-60%
- Efficiency(%): 80
- Insulation class: H
- Overall dimension (CM): 50 x 31 x 28
